EXTERIOR SUN LOUVERS 84R SL 4 / SL 5 / H 3

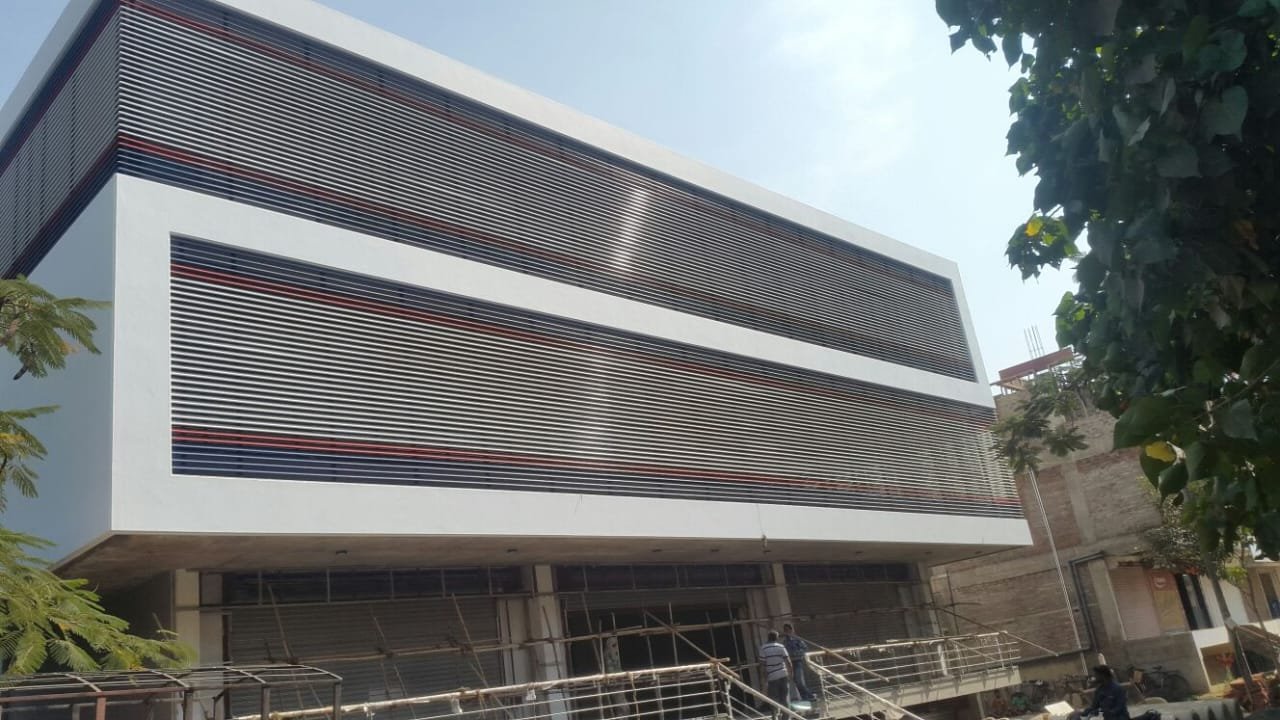

Ultrasil 84R Sun Louvre system is a real classic, used for applications on straight, curved or angled facades. The product has an elegant and light appearance with nicely rounded edges. Horizontal and vertical elements are not always the most suitable solution with Ultrasil 84R Sun Louvre system the panels can be bent or curved to possible the shape of the building. The system can also be used as a ventilated facade system covering for example installations on roof tops or staircases.

Cover ducts & Staircases of Residential & Commercial Projects.

  • Panels : 84mm wide, 15mm deep, length up to 3 mtr.
  • Material : Panel make 0.50mm Galvanized Steel & 0.55mm Alu Zinc, 0.65mm Aluminium -TCT.
  • Carrier : Various dimensions (SL-4 / SL-5 / H-3) 0.60mm thick black Coil Coated / Powder Coated Galvanized Steel
  • Perforation :
  • Paint Finish : Finish surface with Corrosion Resistive Exterior HYPERCOTE Powder Coating warranty of 10 Year for Exterior applications, preferred with visible & back (both) side powder coated.
  • Suspension : L Clit, Aluminium section or MS Pipe, Corrosion & weather resistive screws and other components if required for erection.

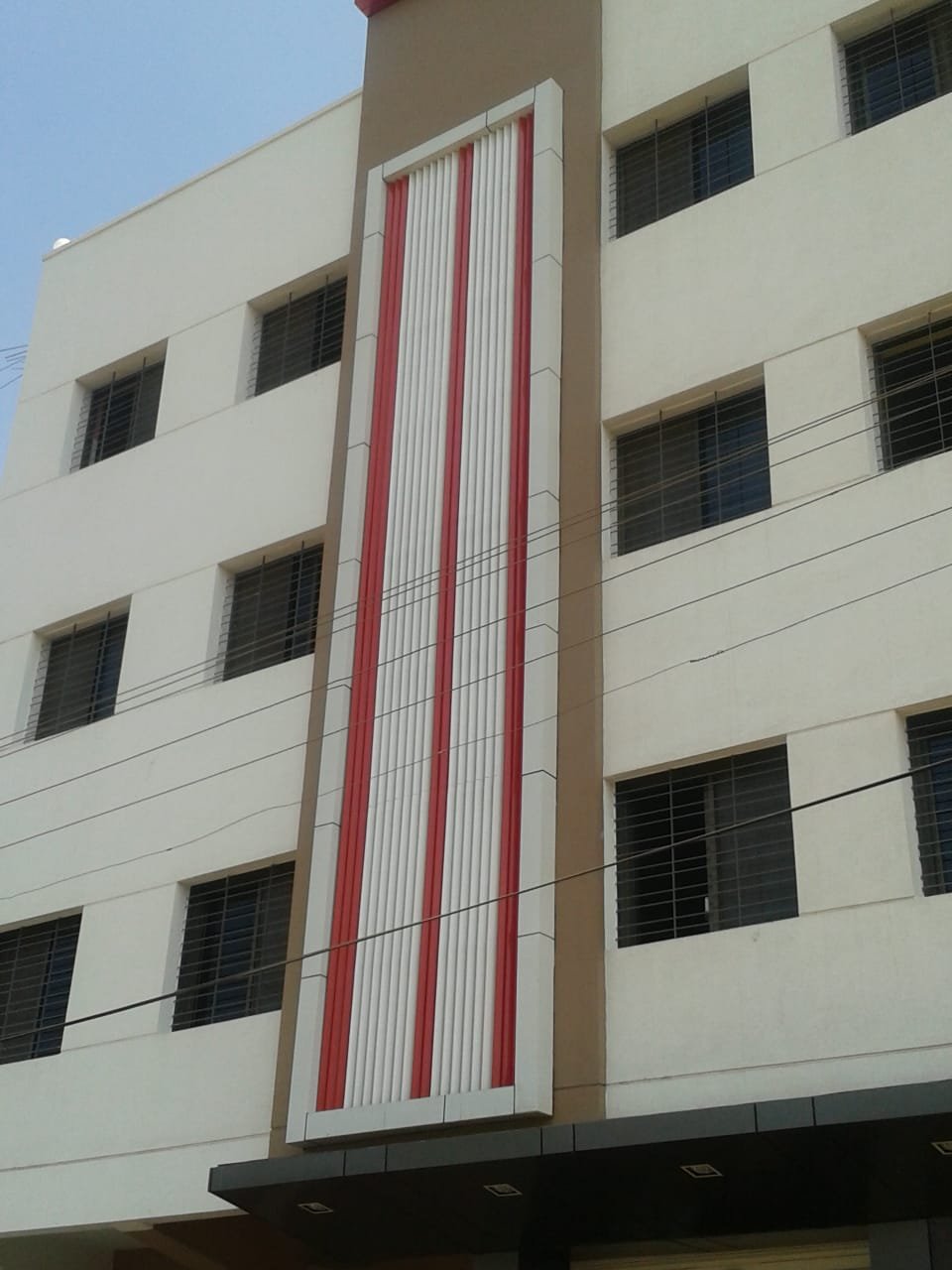

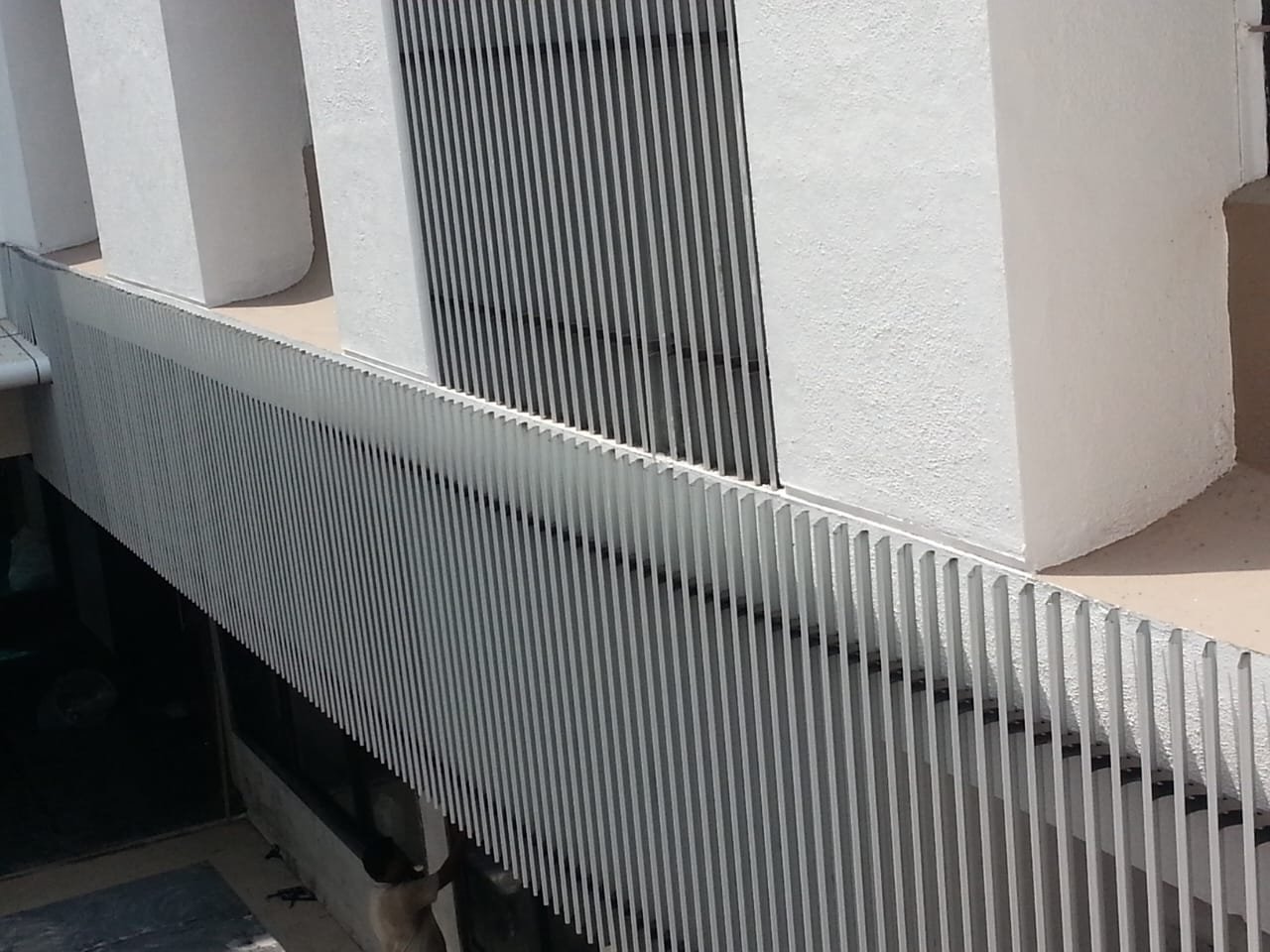

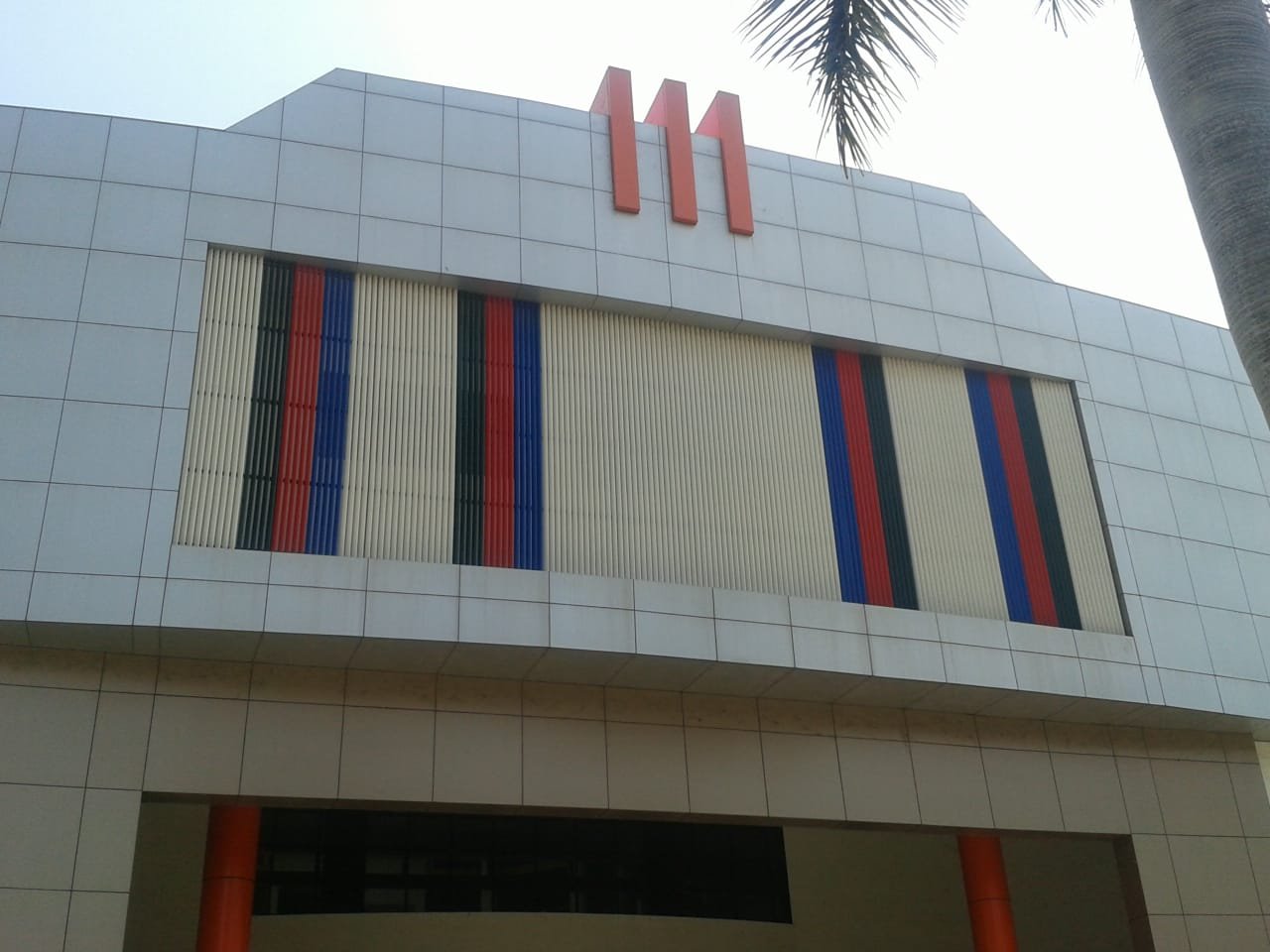

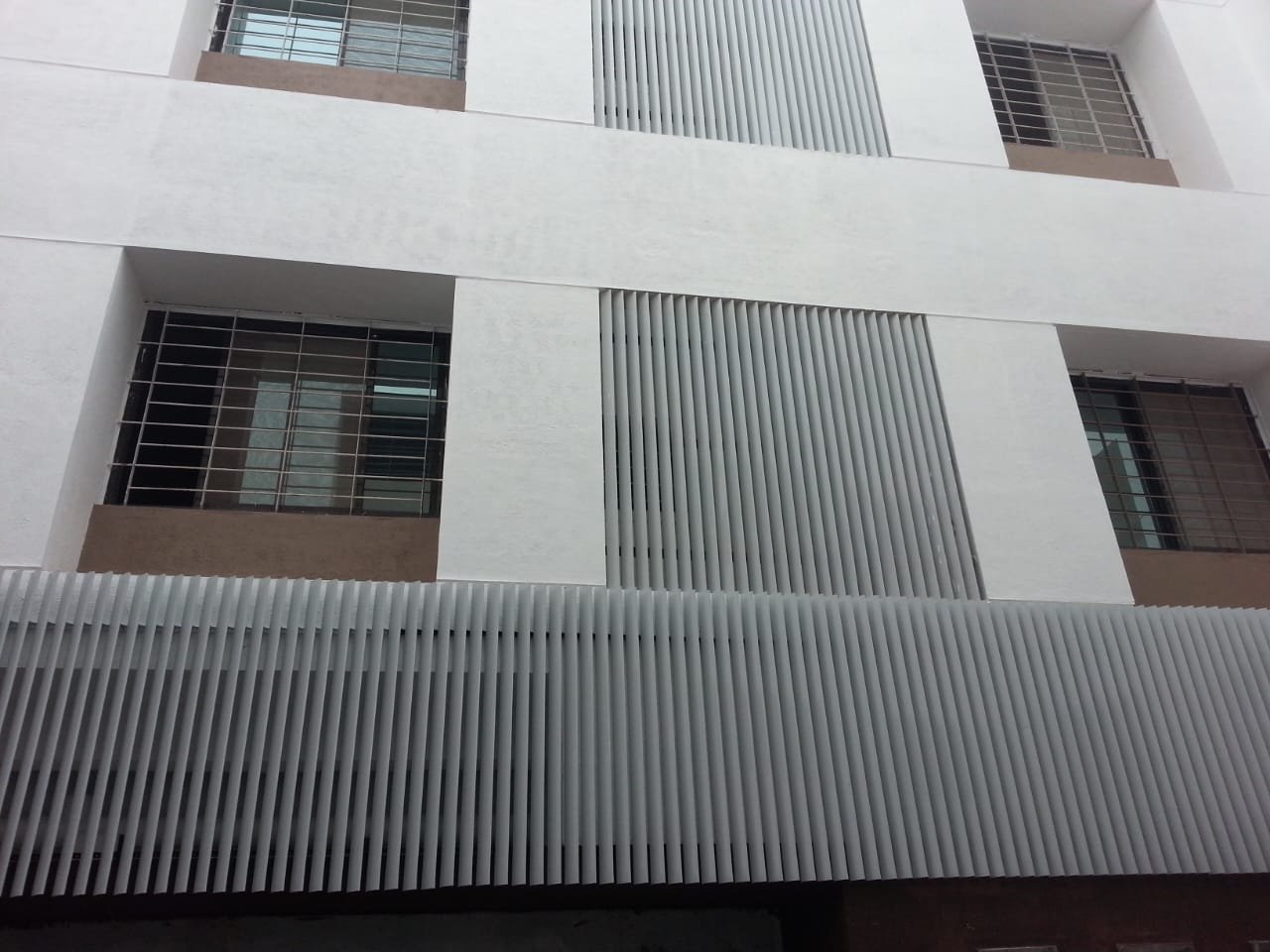

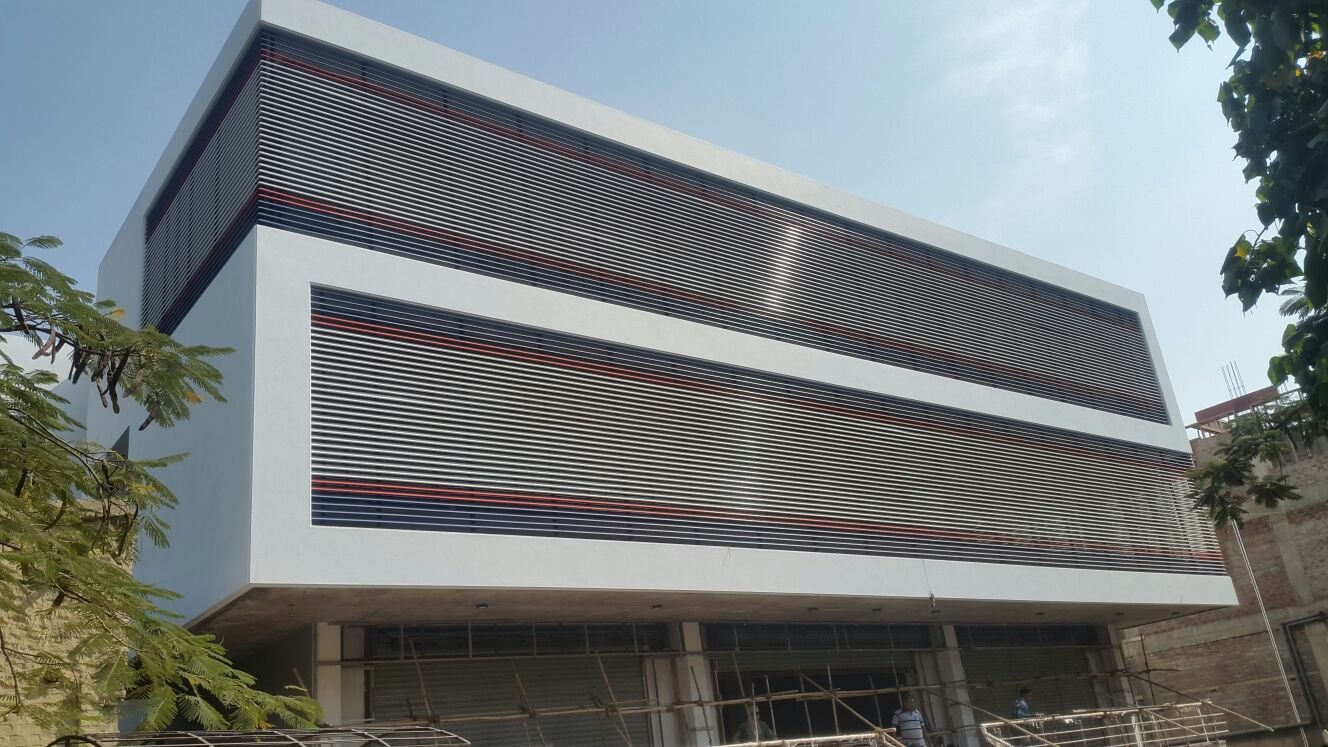

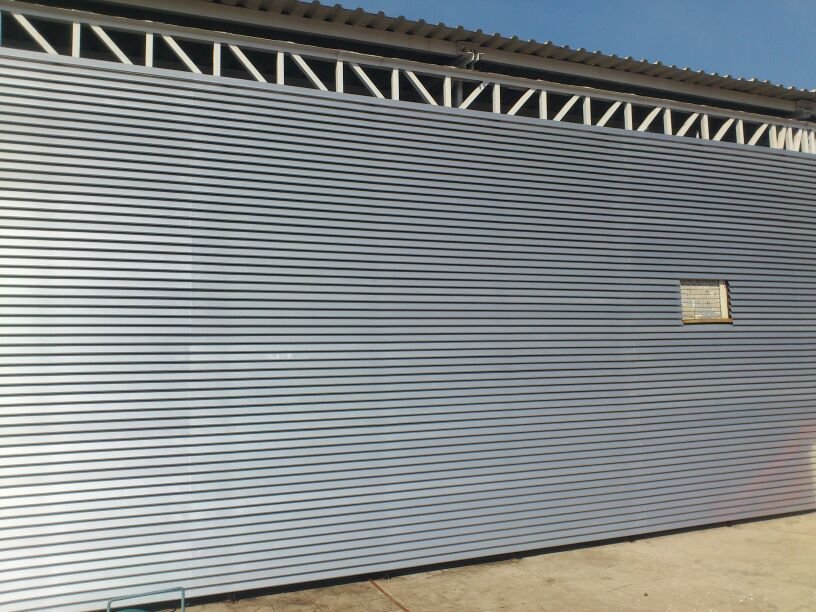

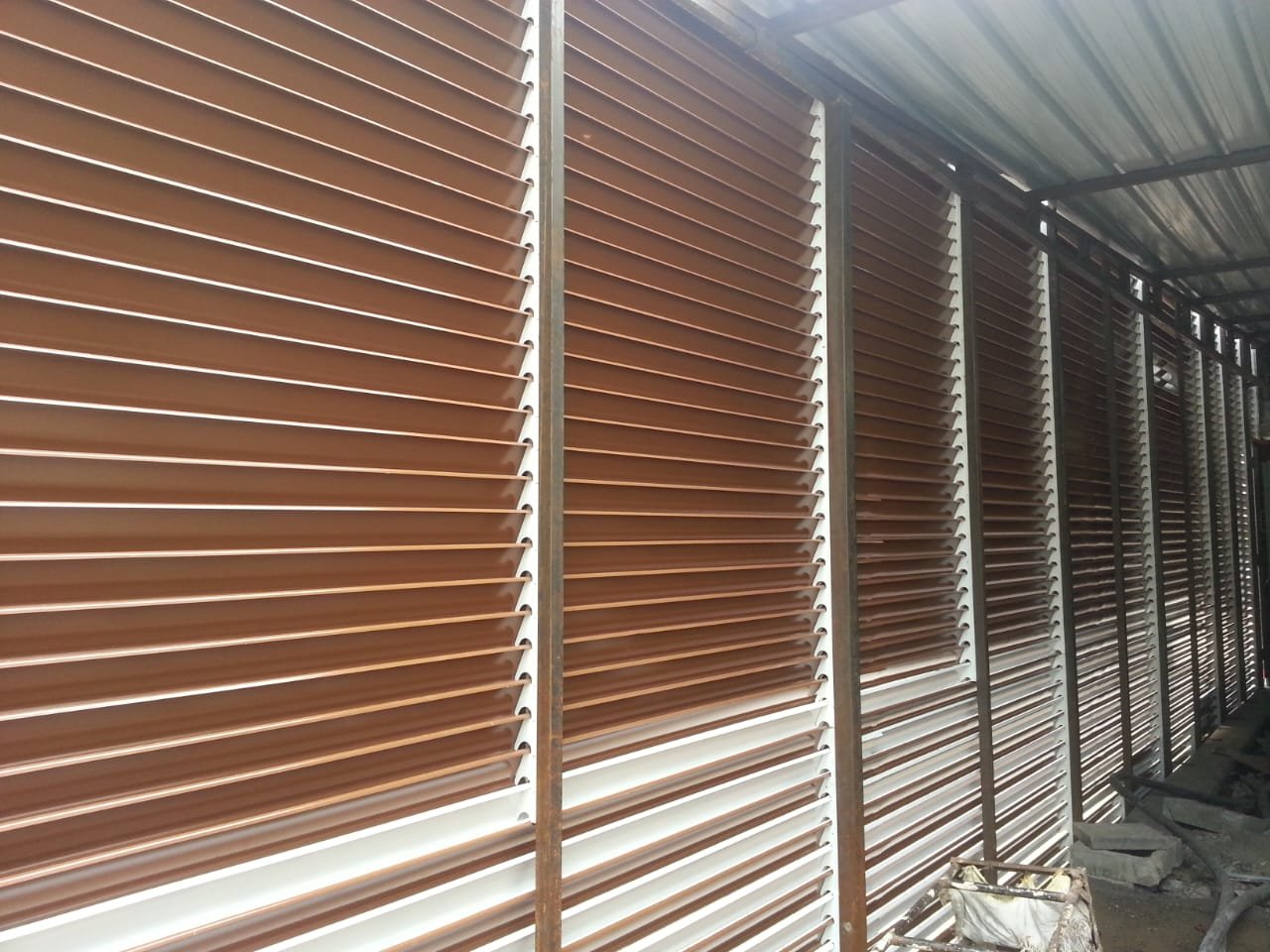

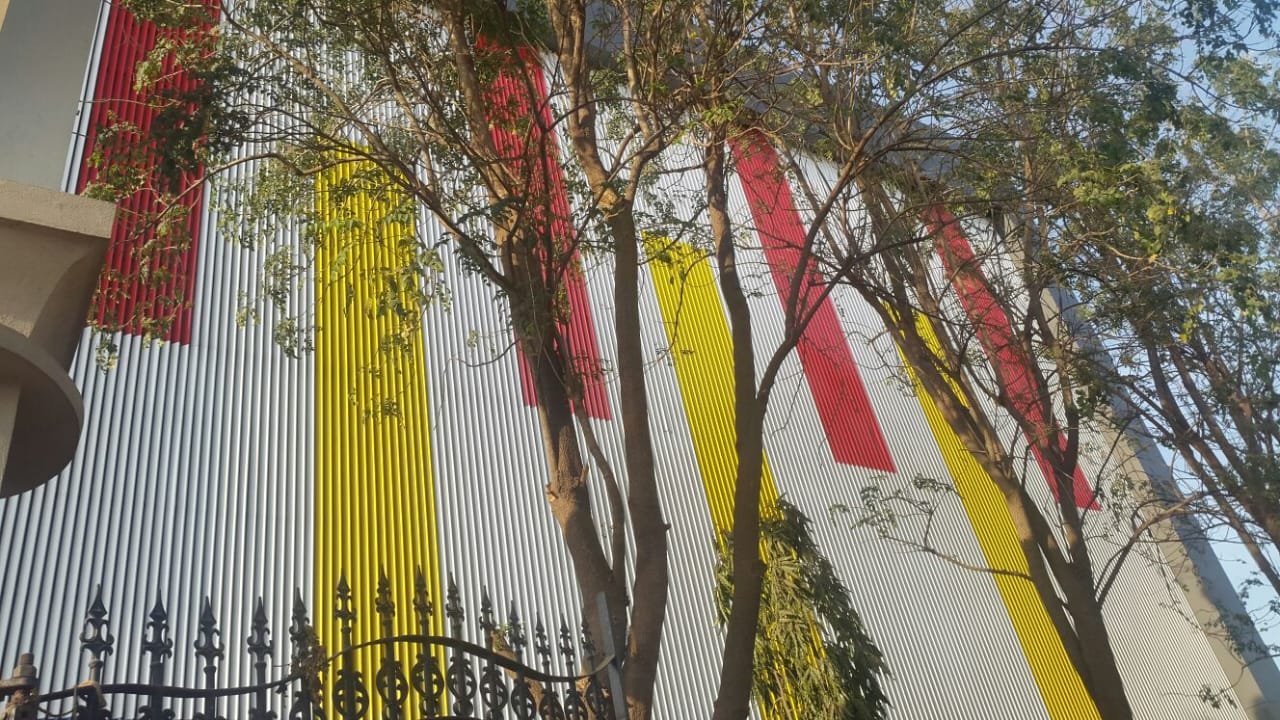

Click on image to view larger:
