LINEAR 84C / 184C / 284C

Ultrasil Linear 84 C closed ceiling system consisting of 84mm / 184mm/ 284mm wide square shaped panels which can be easily clipped on to a carrier. The Panels have a 25 mm wide flange that closes-off the 16 mm joint between the panels. A wide choice of colours and finishes are available. Panels can be perforated for enhanced acoustics.

Passages, Balconies, Lift Lobbies, Bathroom, Wall Cladding

  • Panels : Square edge, 84mm / 184mm wide, 15mm deep, length up to 3.5 mtr.
  • Material : 0.45 / 0.50mm Galvanized Steel & 0.50 / 0.65mm Aluminium - TCT.
  • Carrier : 20mm wide, 45mm deep of 0.50mm / 0.60mm thick black coil Coated Galvanized Steel to hold panel in module of 100/200/300 mm.
  • Perforation : 2mm dia 5mm pitch Diagonal pattern. 2mm dia 5mm pitch Regular Pattern.
  • Paint Finish : 55 microns thick powder coating on exposed surface or 25 microns polyester coil coated over primer on visible surface with primer coat on rear side.
  • Suspension : 4mm dia galvanized rod, height adjustment Spring Steel big clip, panel coupler, GS/Aluminium edge profile 18mm (Horizontal)* 20mm (Vertical).

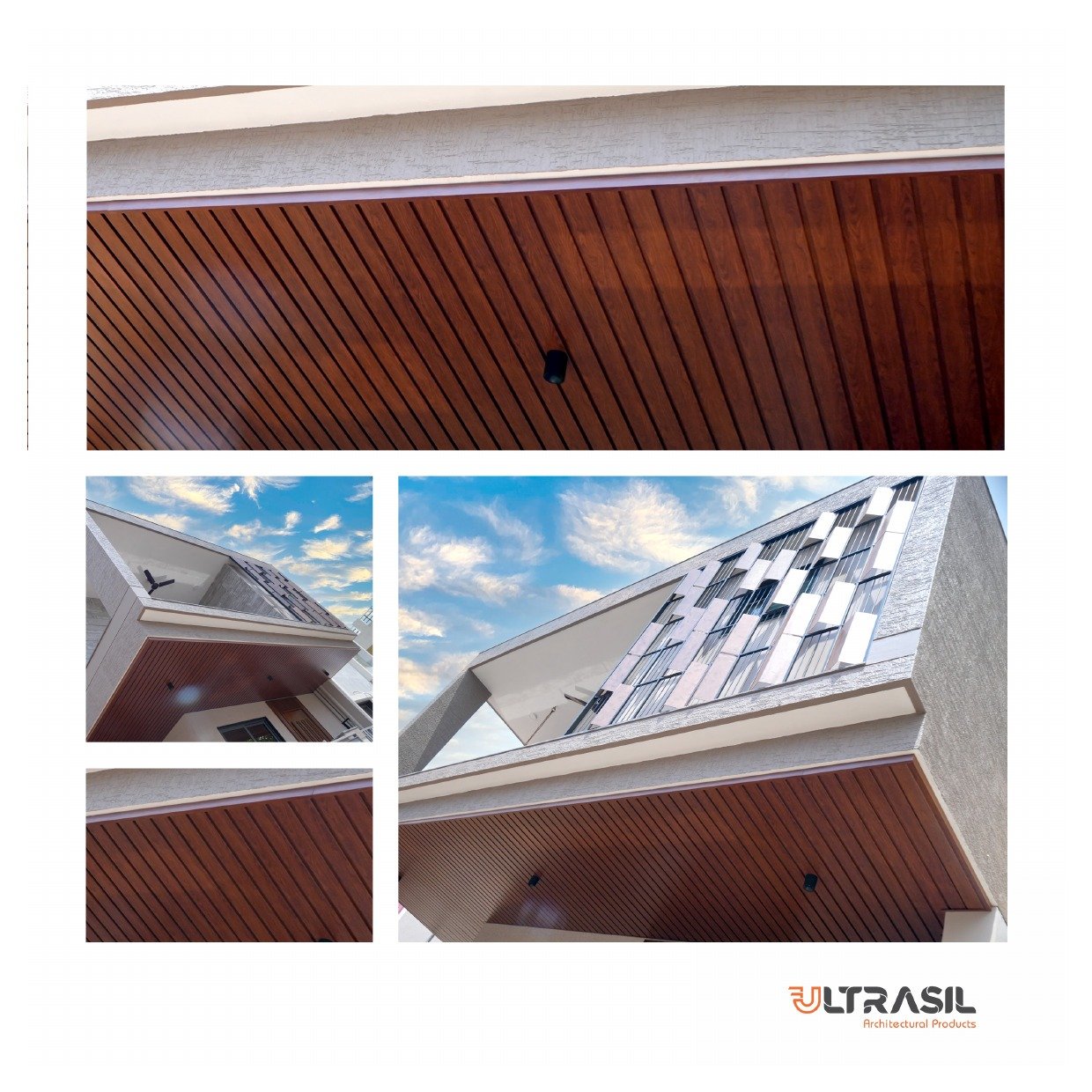

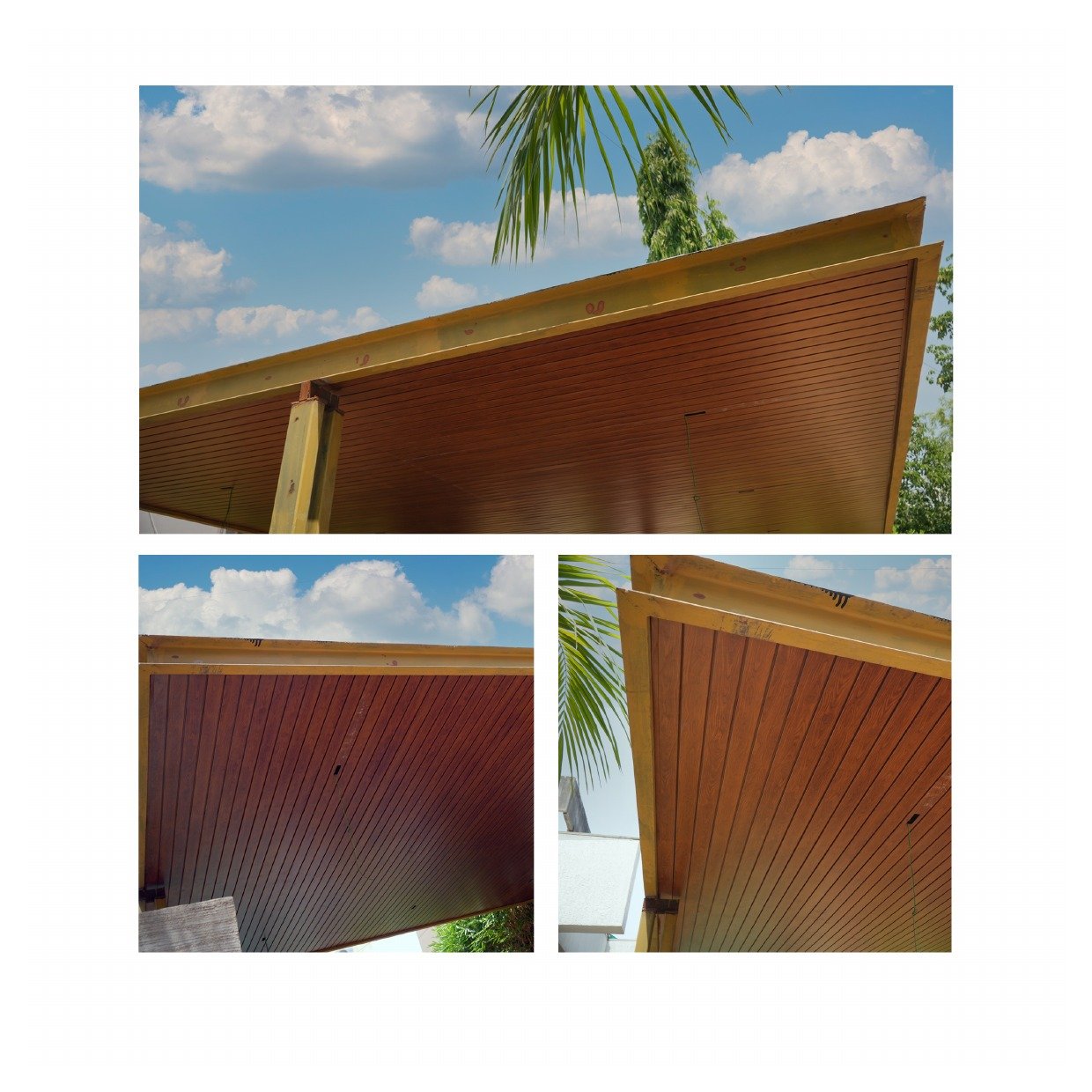

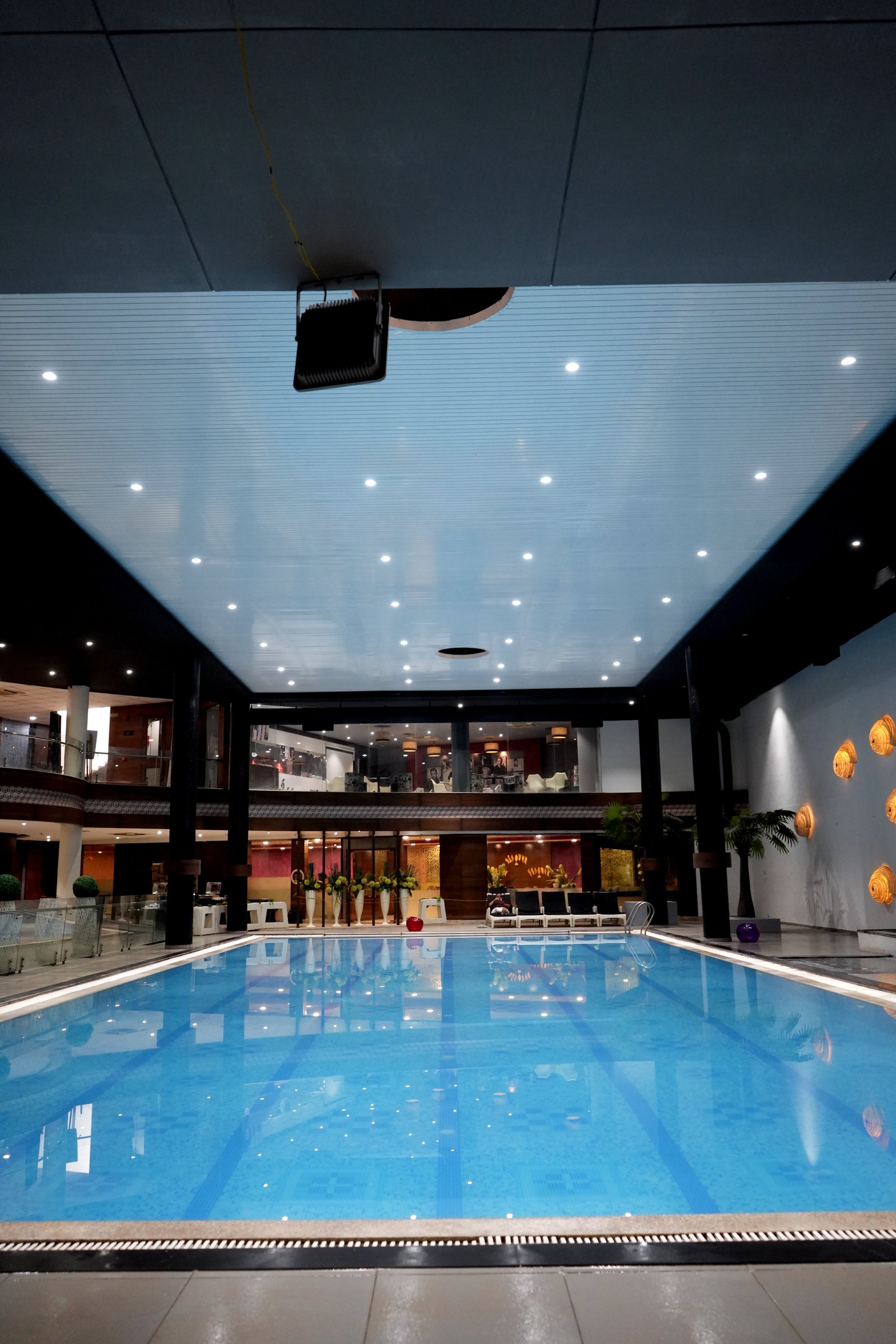

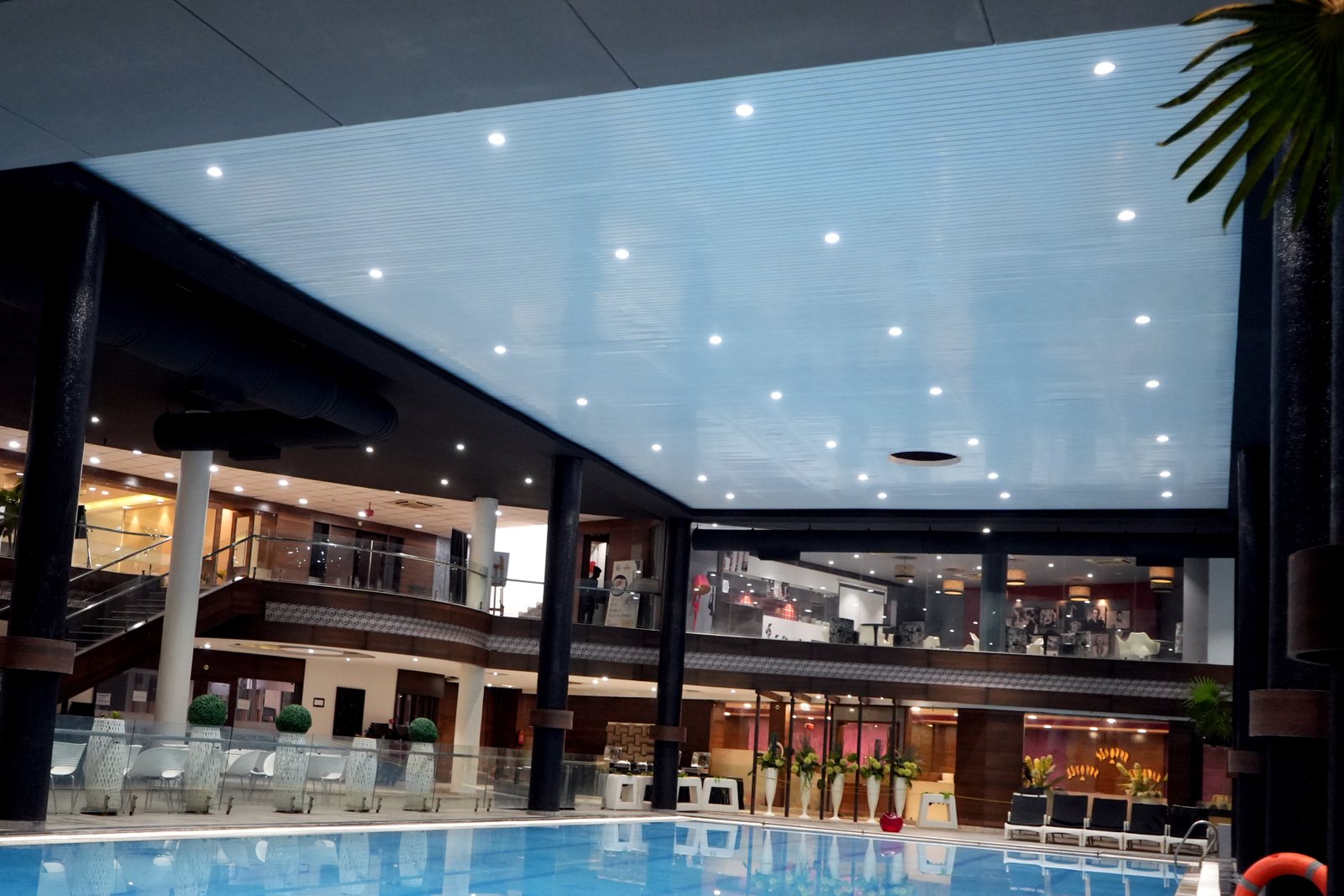

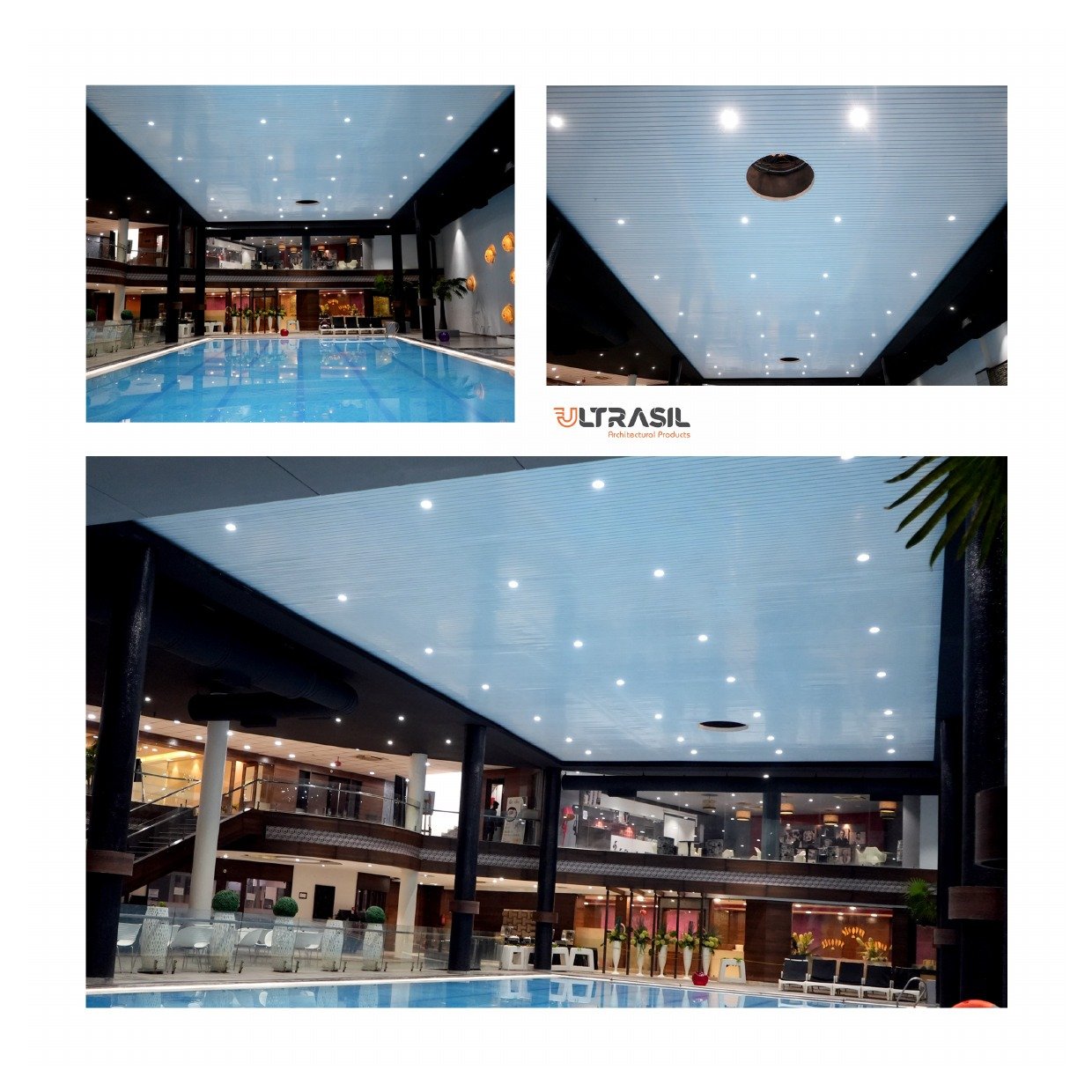

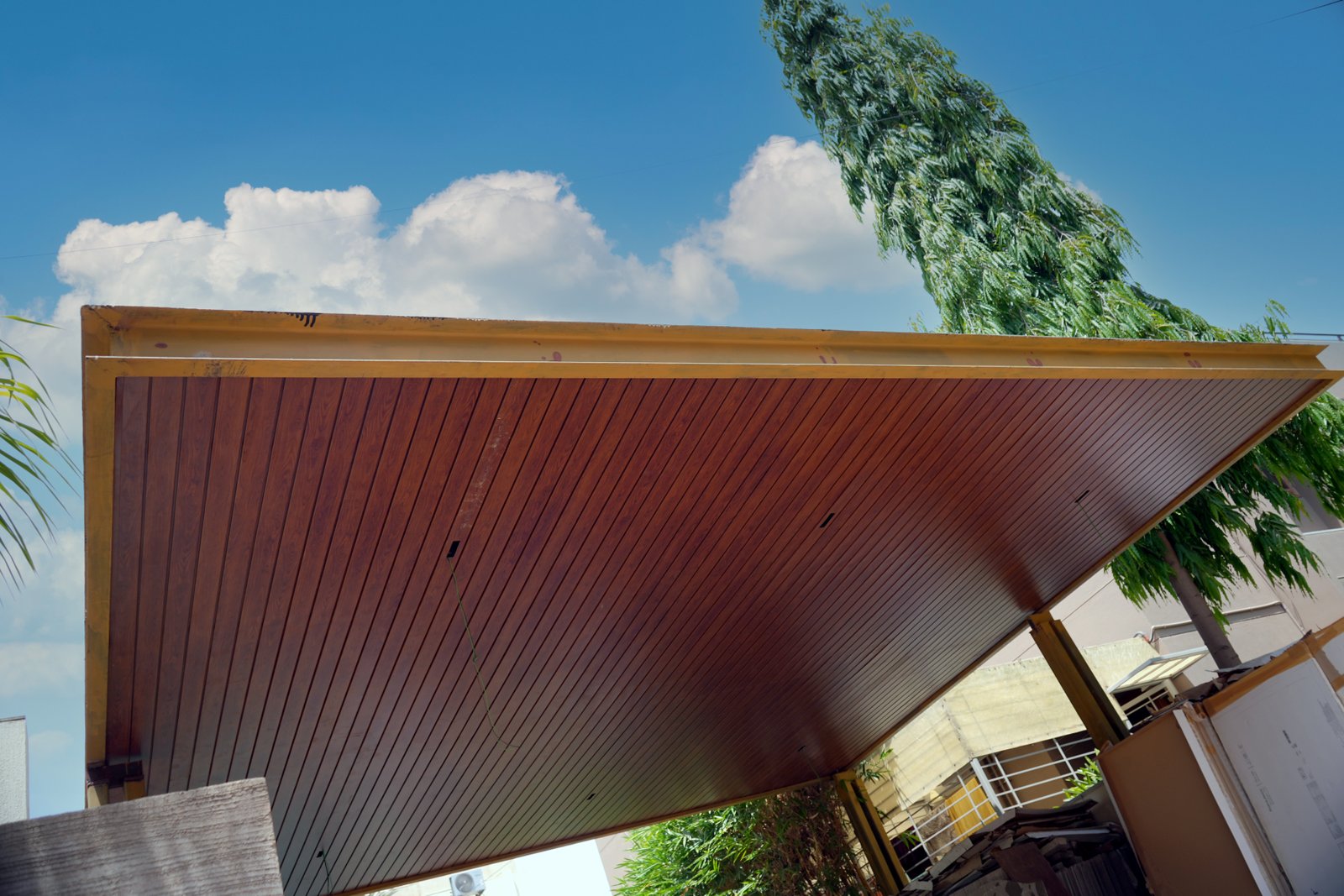

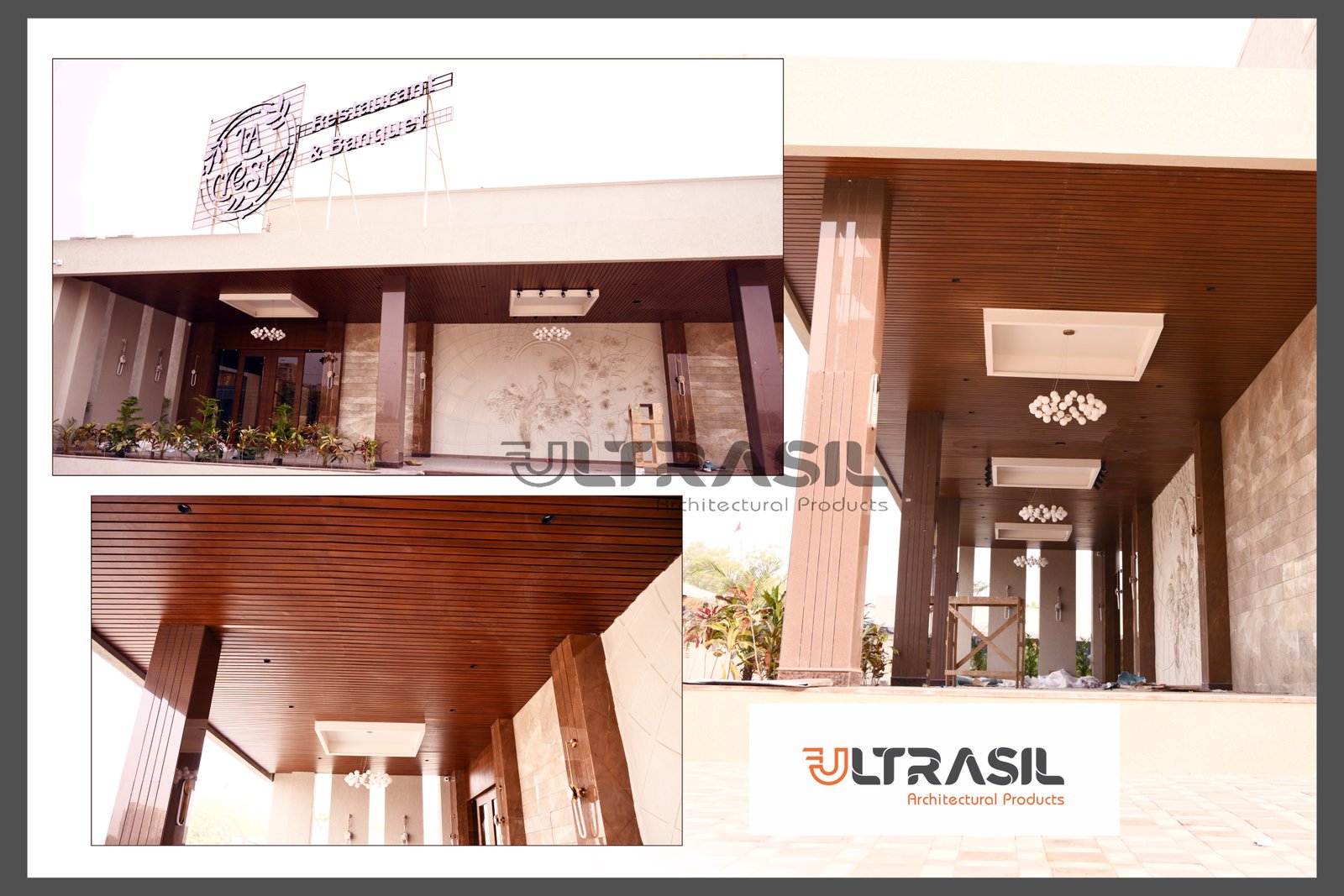

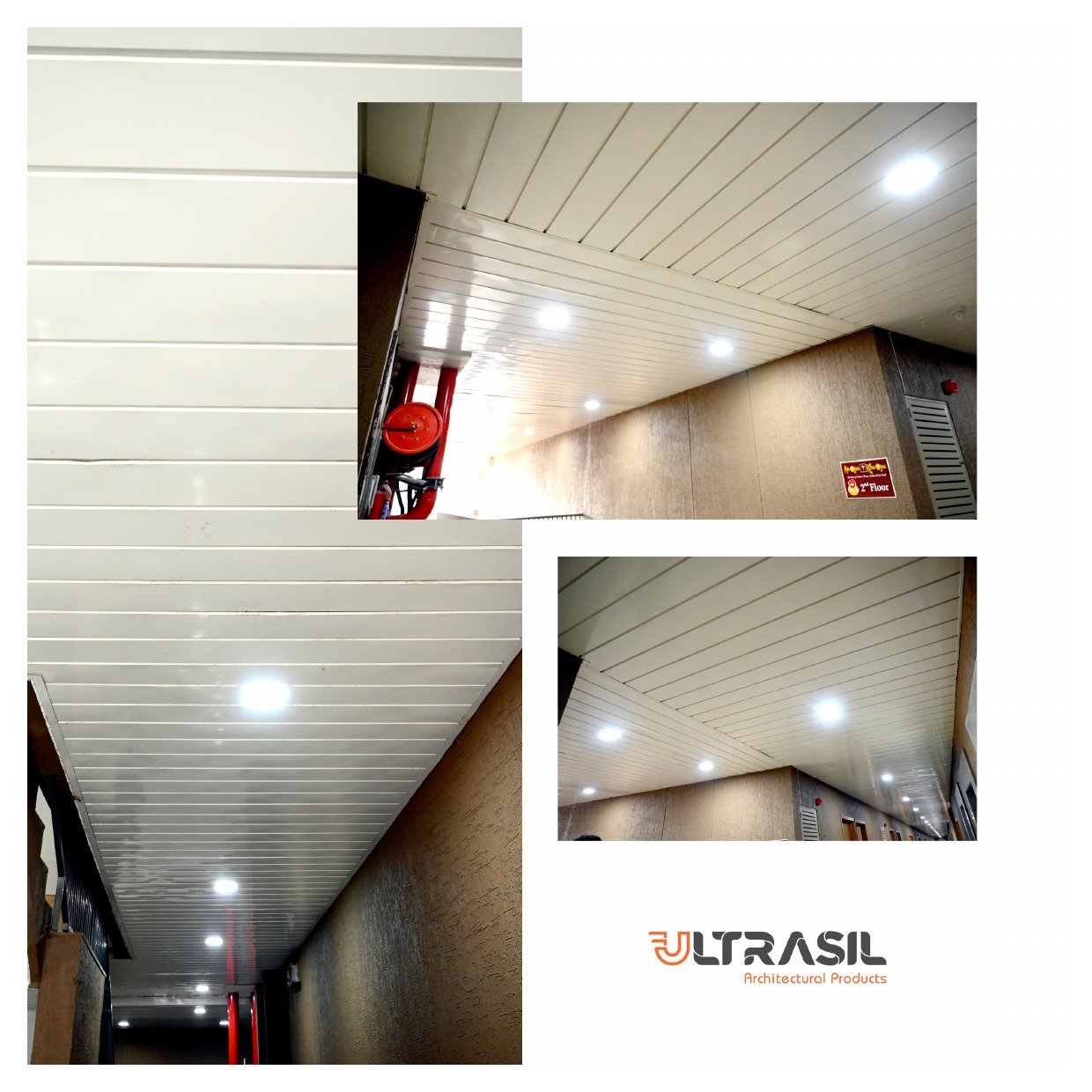

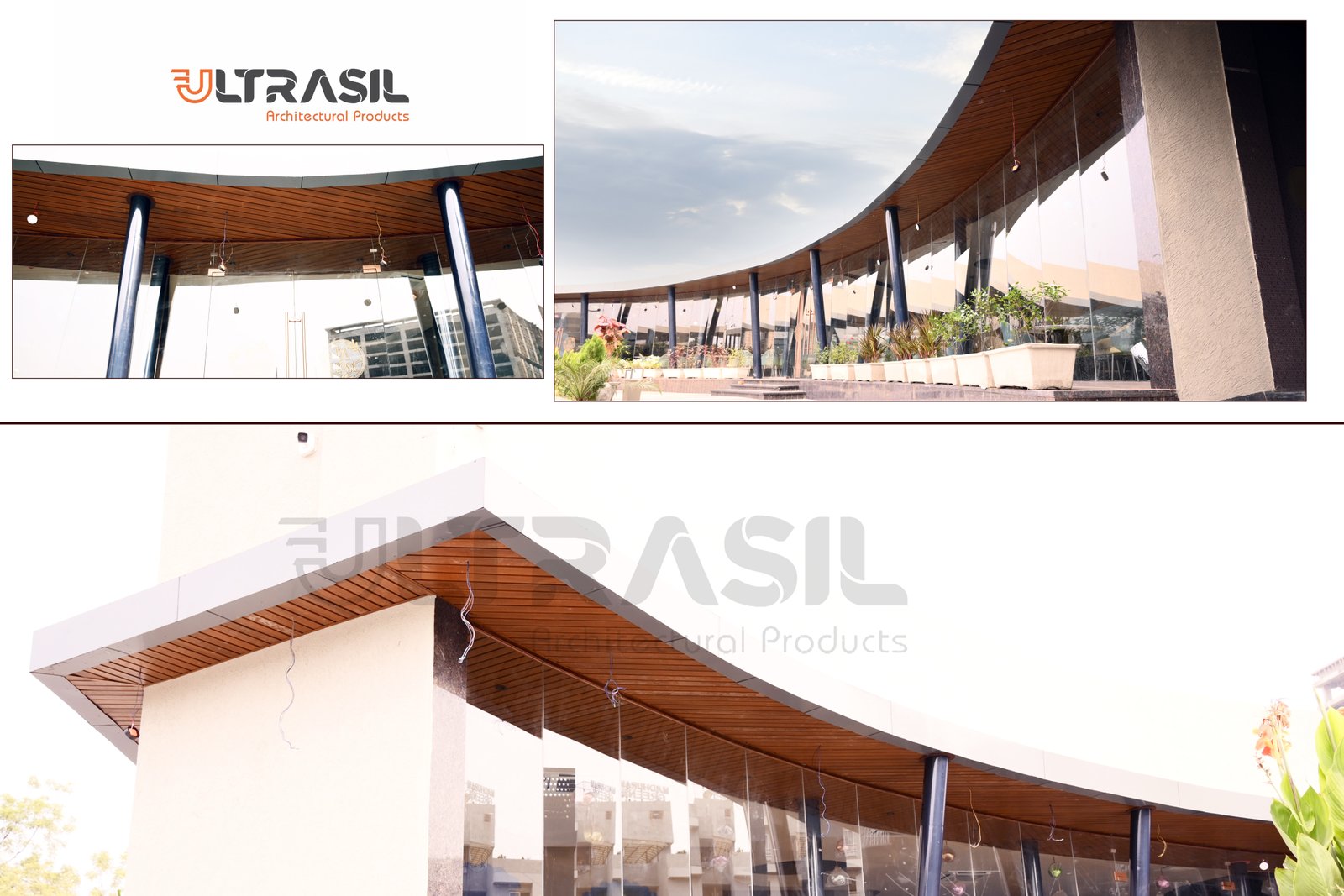

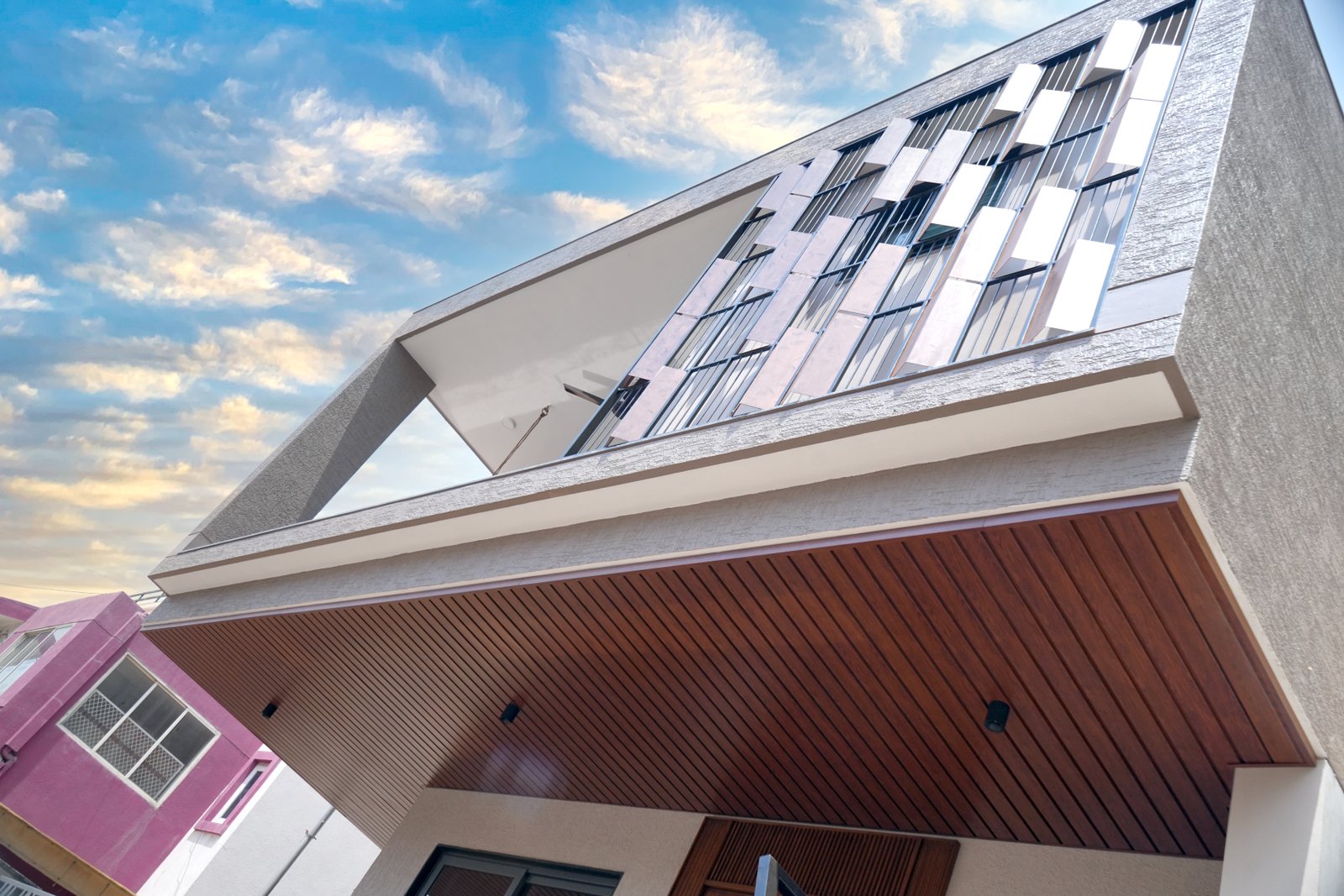

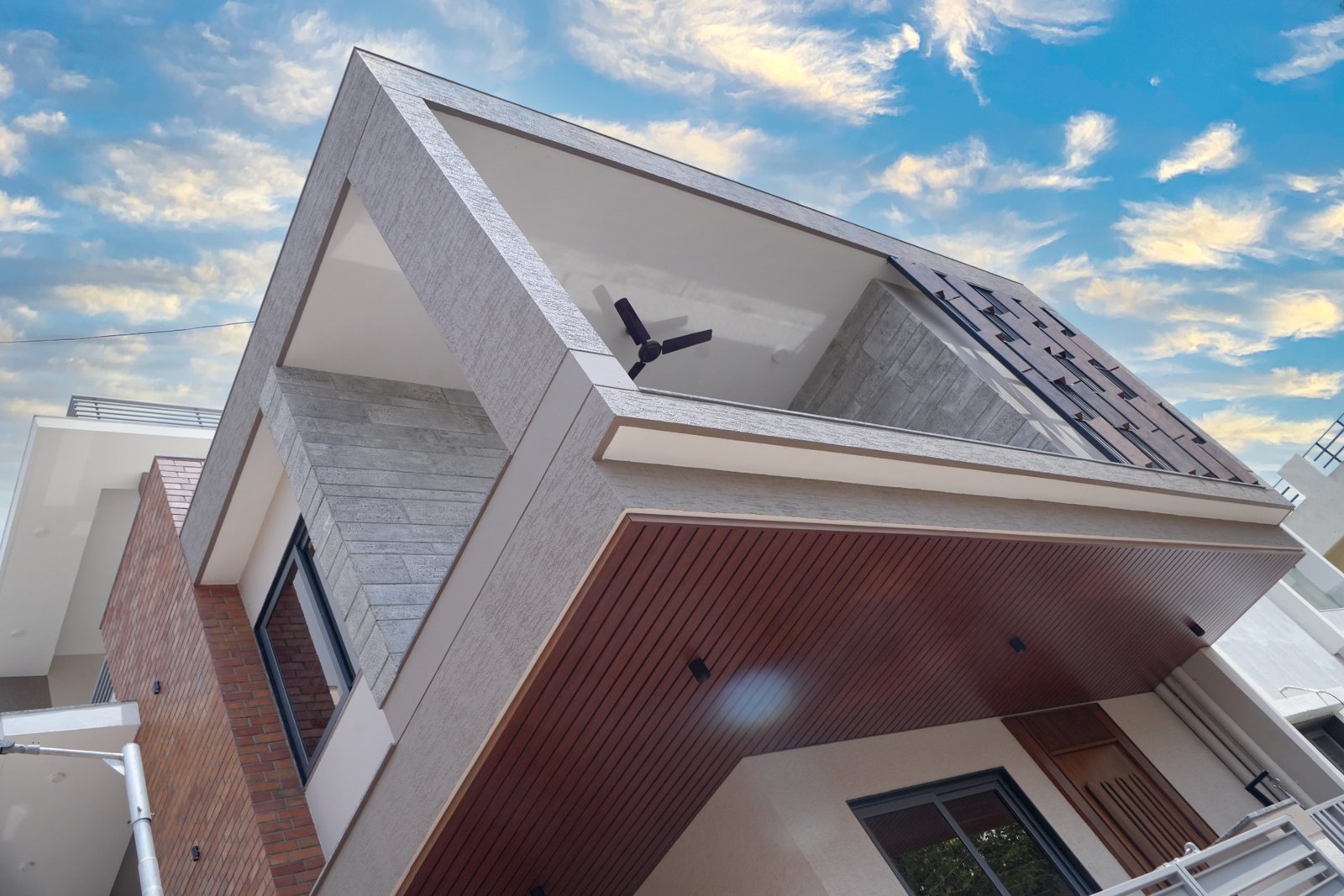

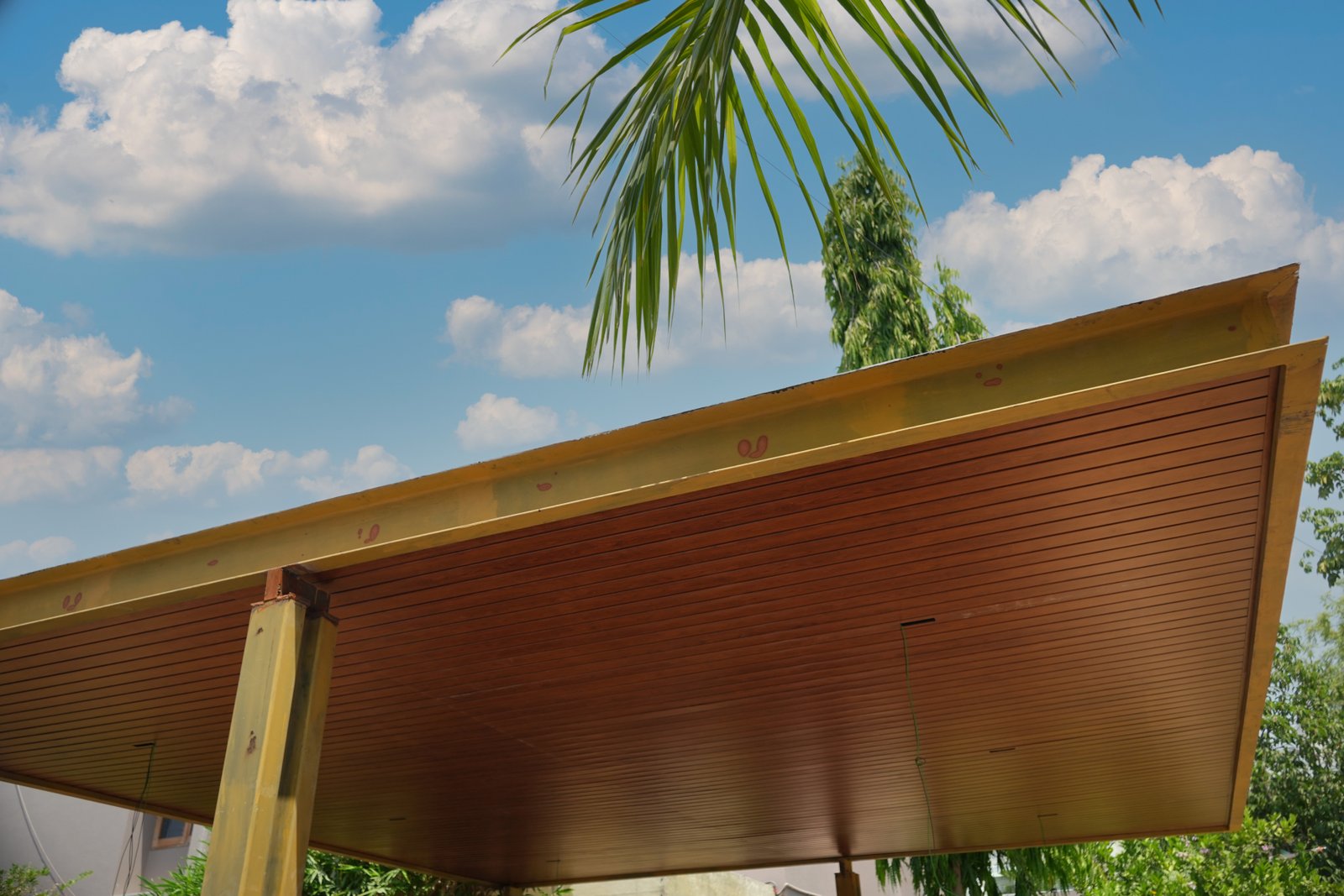

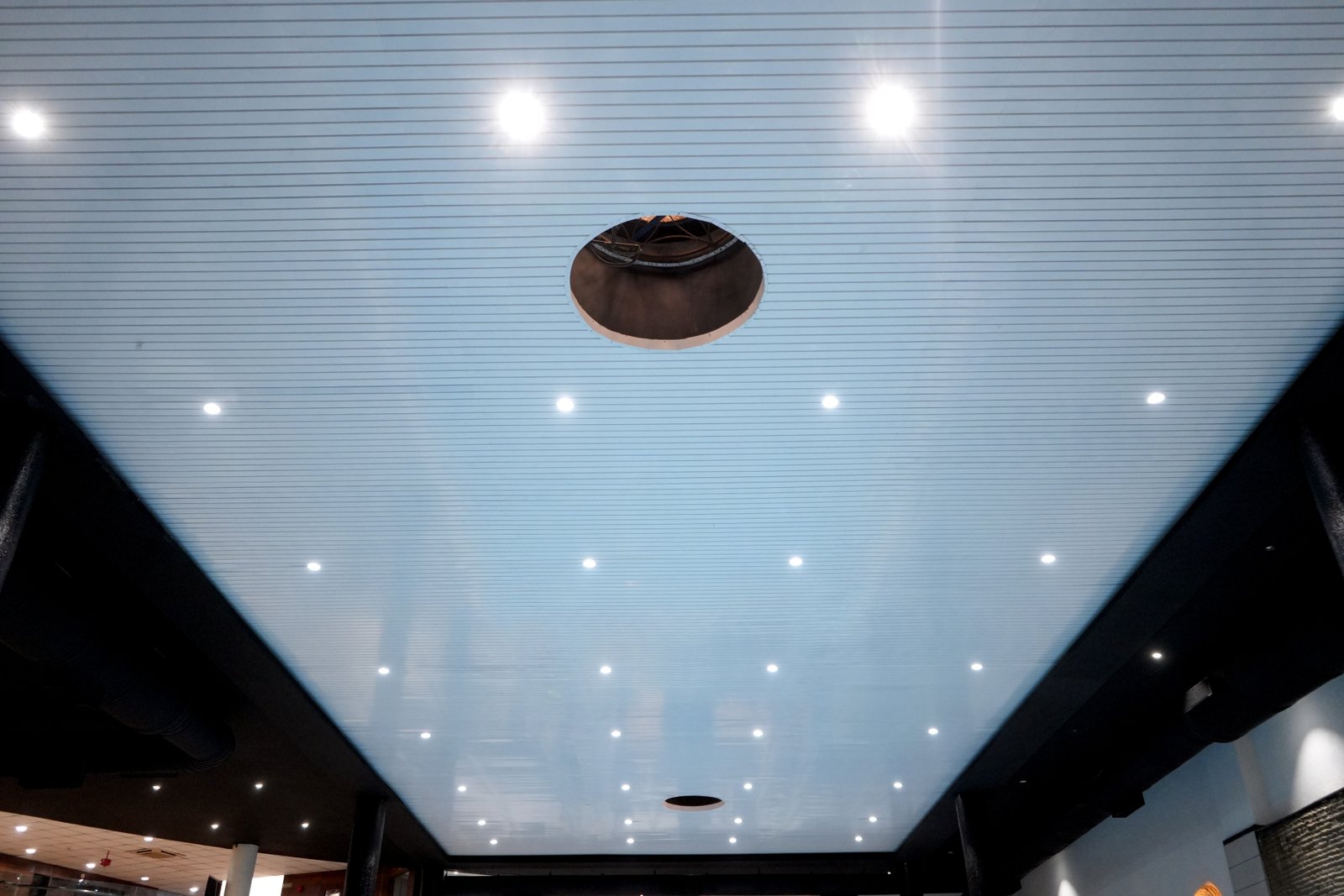

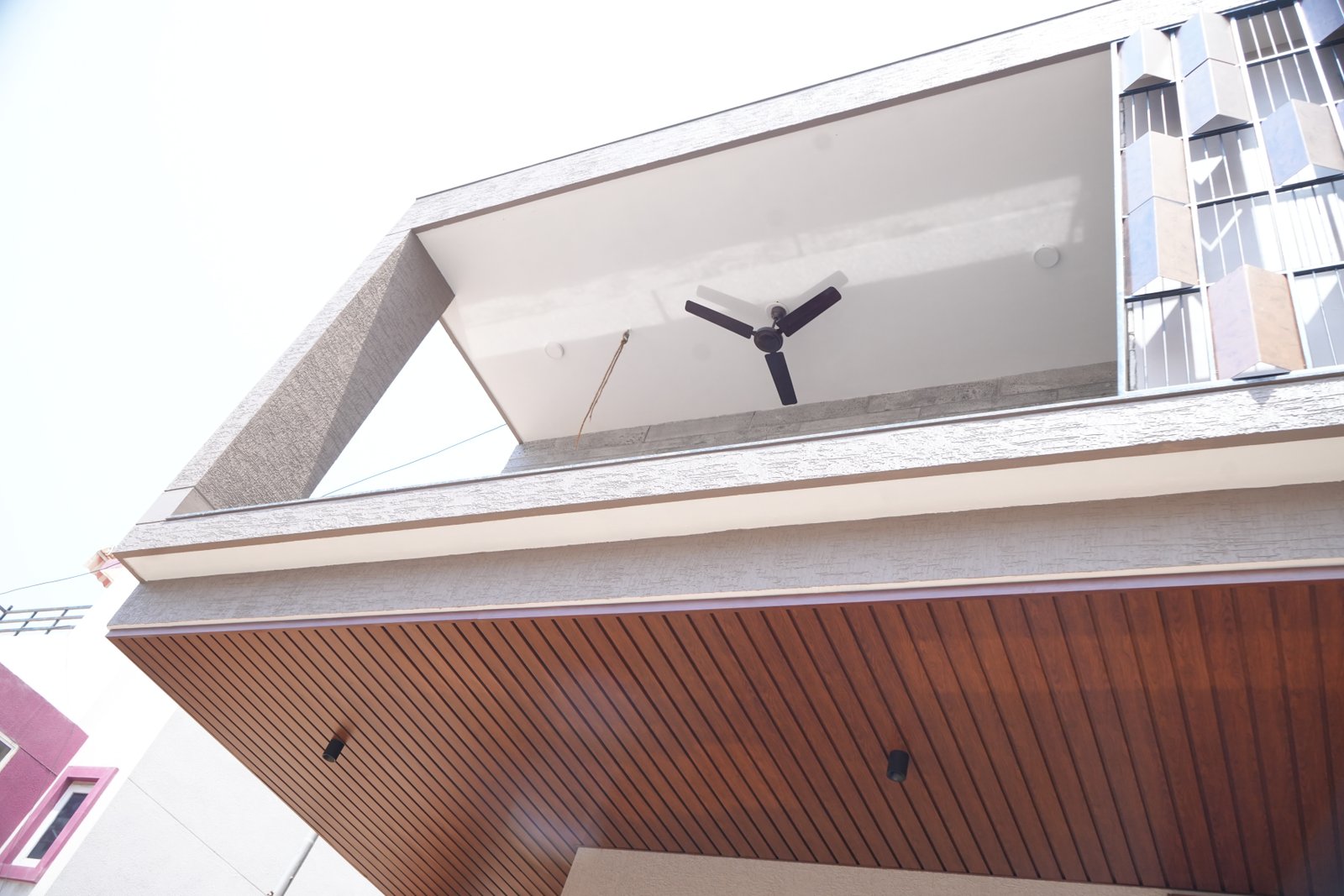

Click on image to view larger:
