OPEN CELL CEILING

Ultrasil make open cell ceiling system creates a simple open plan ceiling design. These panels can be easily installed or removed, providing quick access to the ceiling plenum. Considered ideal for meeting the designer ceiling needs, open cell metal ceiling systems are quite demand able for its ability to accommodate air diffusers and lay-in light systems. Its multiple cell options with T-15 grids make it worth applying and giving a stylish edge. The beauty of this ceiling system is such that its availability in distinctive shades will allow for quality presentation. In this world of designer ceiling, open cell holds prime importance.

Corporate Offices, Entrance Foyers, Shopping Mall and Convention Hall Areas, Reception Areas.

  • Panels : 15mm width 40 mm height cell module 50mm, 75mm, 100mm, 150mm
  • Material : 0.45 / 0.50mm Galvanized Steel & 0.50 / 0.65mm Aluminium - TCT.
  • Carrier : Tee Grid section T 15 mm
  • Perforation :
  • Paint Finish : 55 microns thick powder coating on exposed surface or 25 microns polyester coil coated over primer on visible surface with primer coat on rear side.
  • Suspension : 4mm dia galvanized rod, height adjustment Spring Steel big clip, GS wall angle.

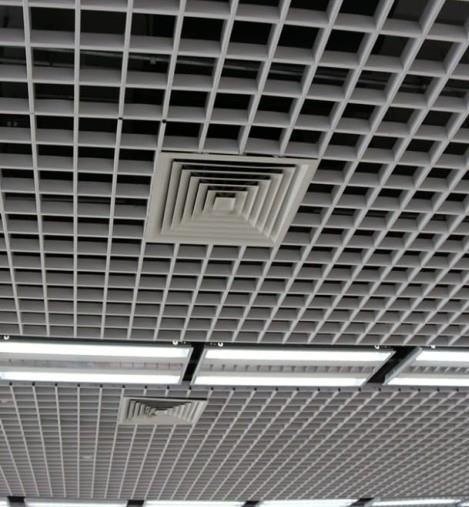

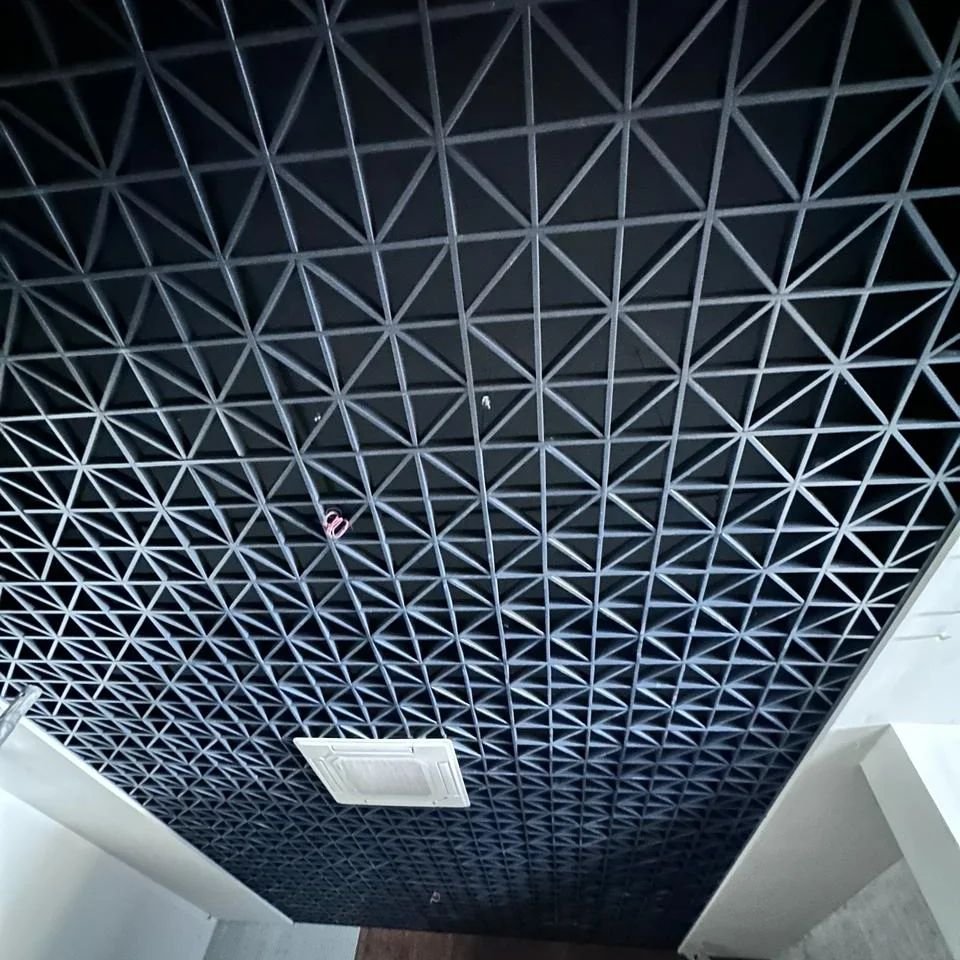

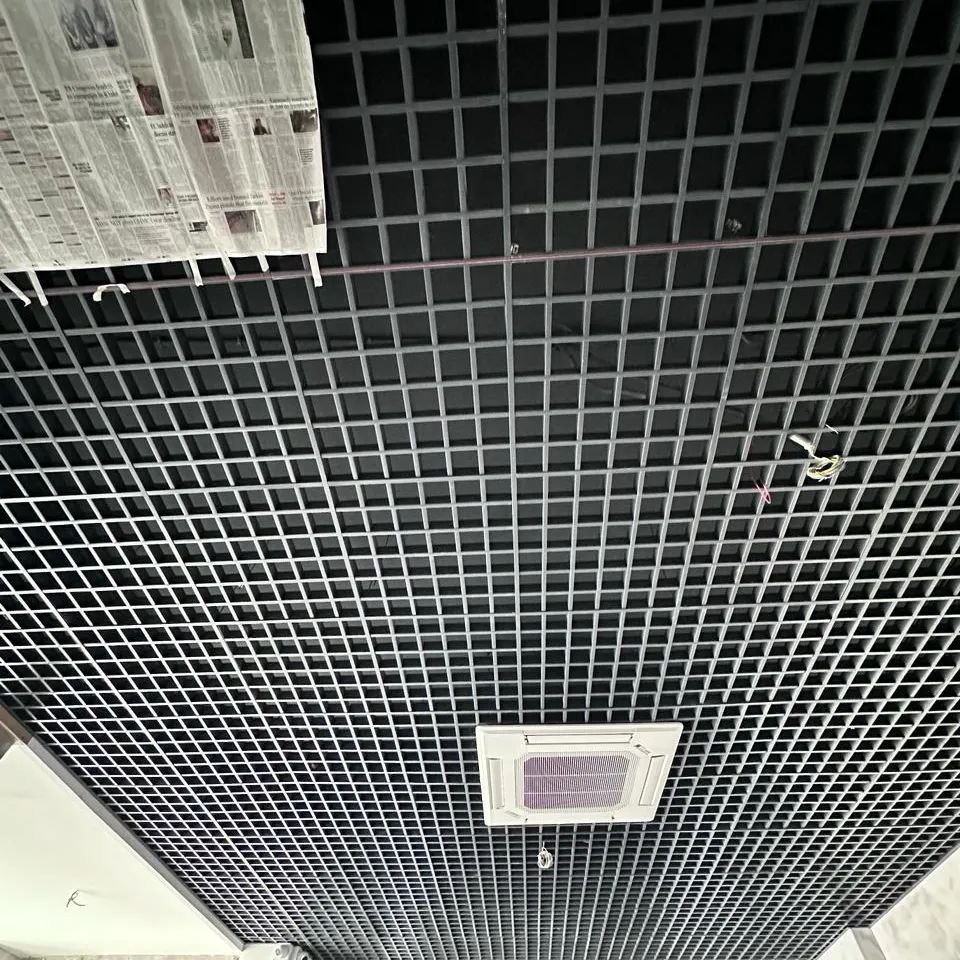

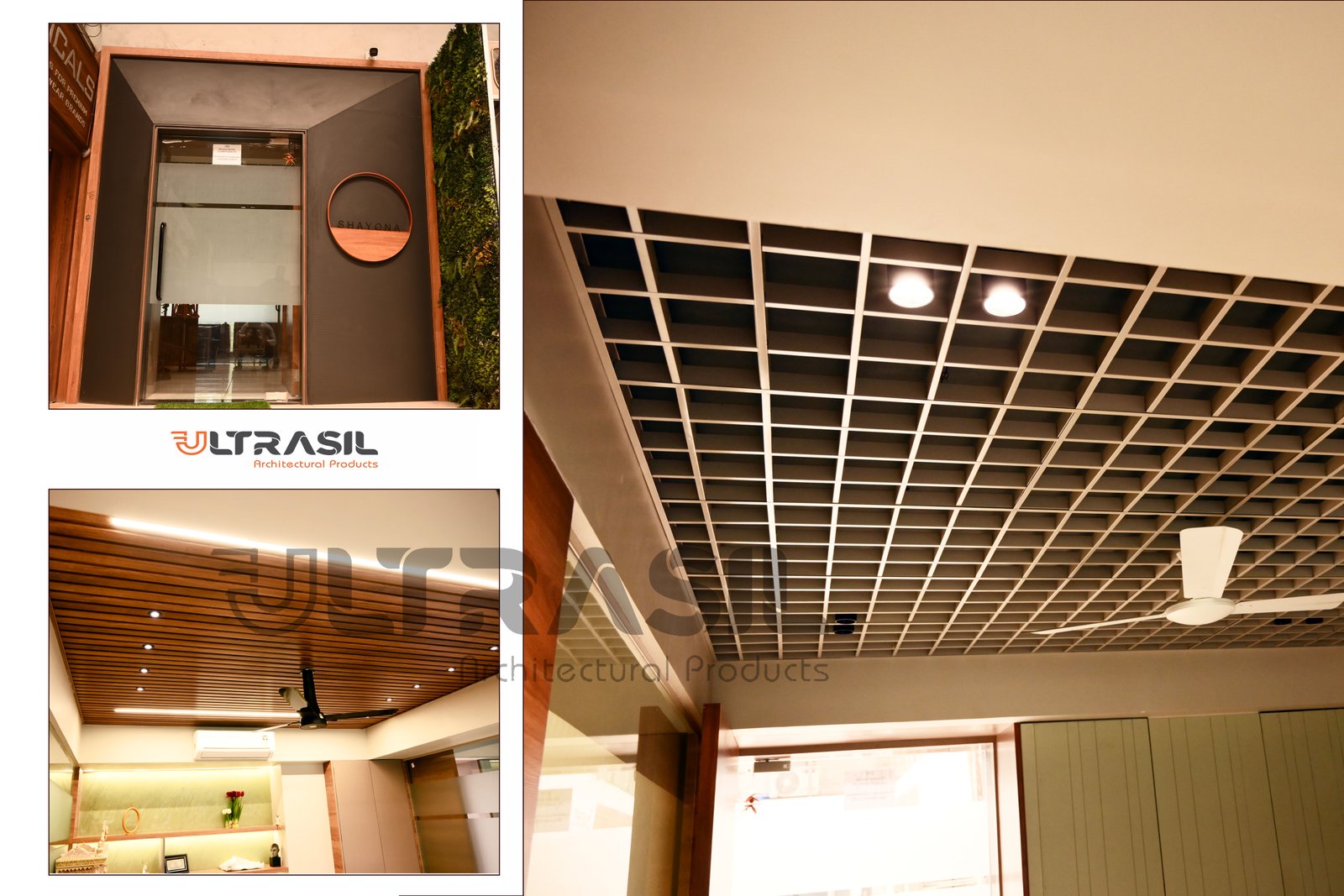

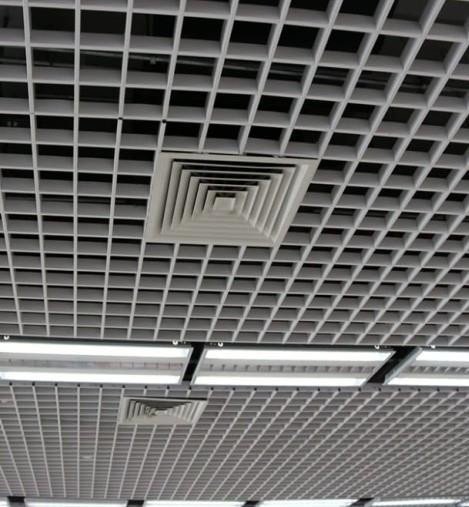

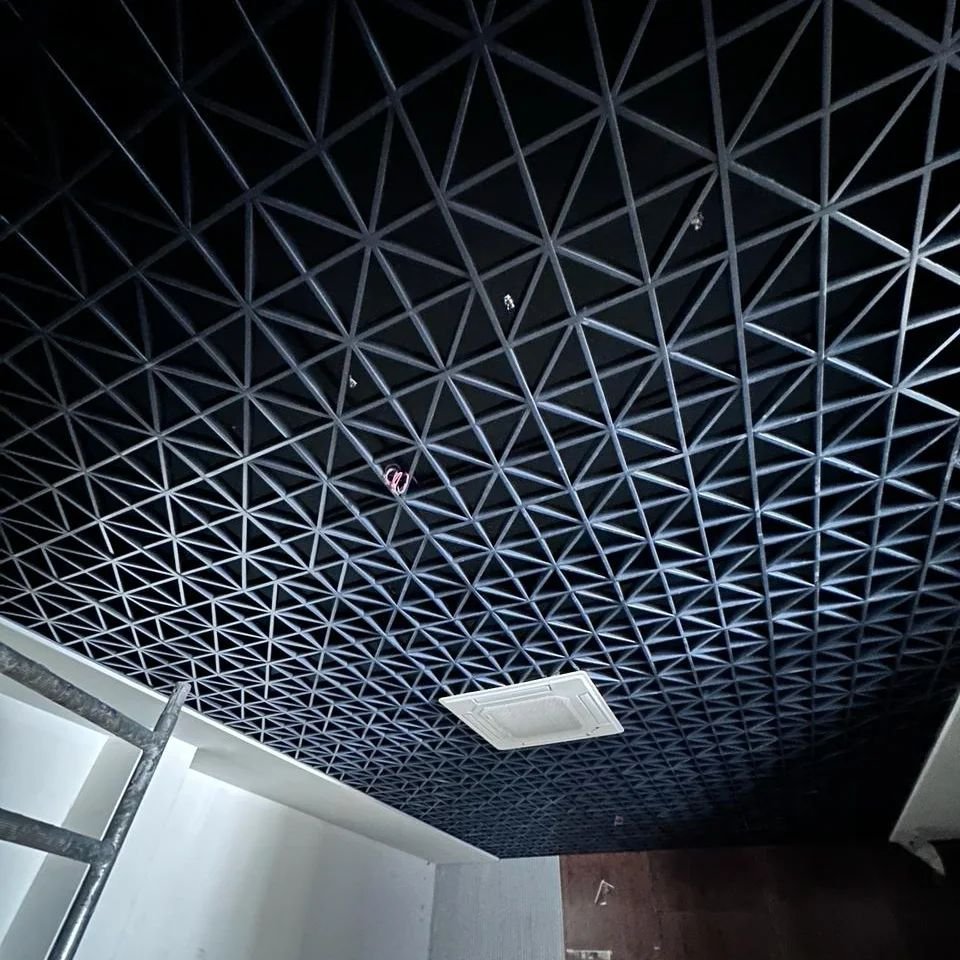

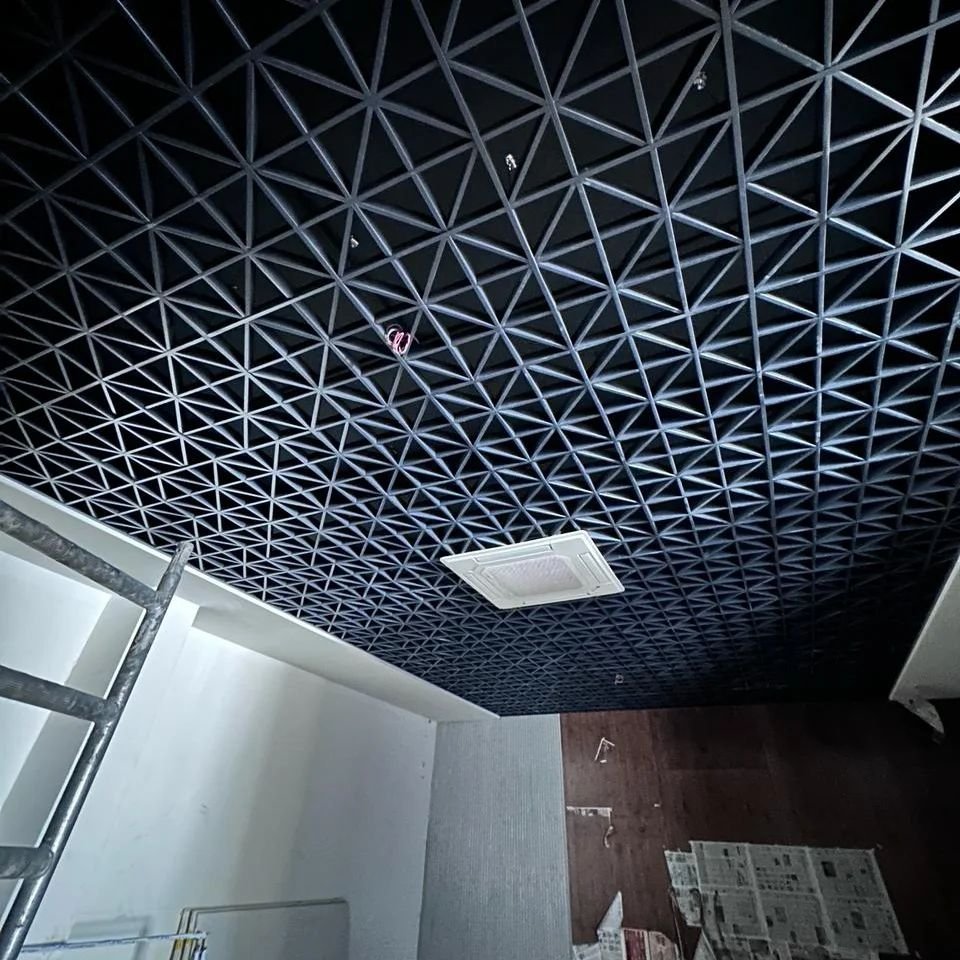

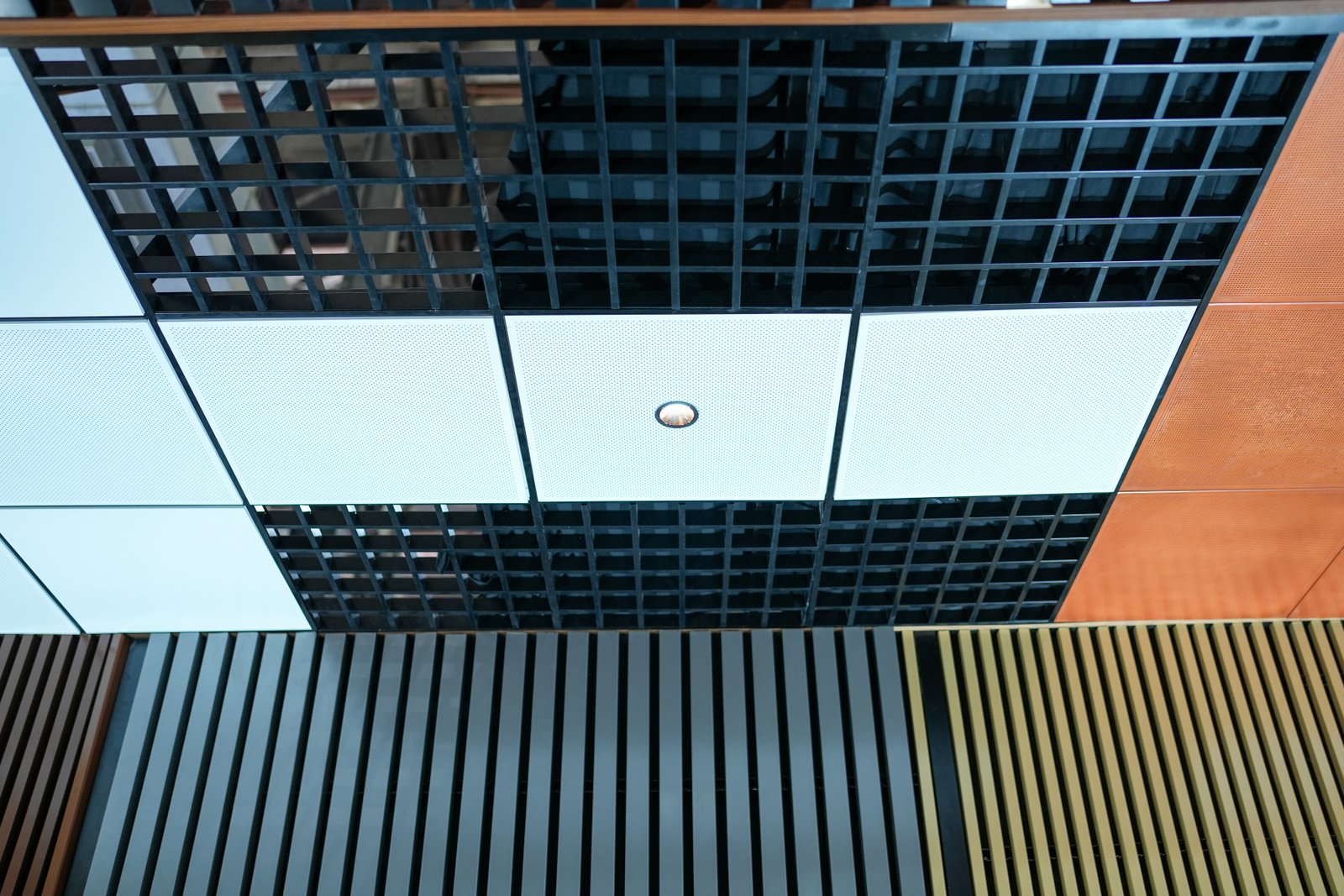

Click on image to view larger:
