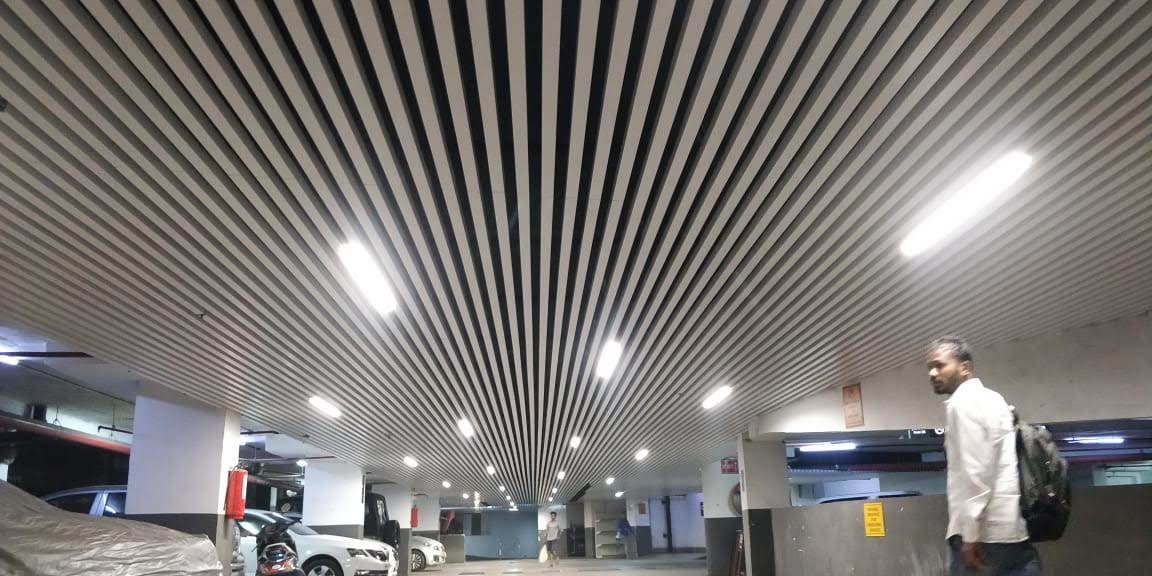

U SHAPE BAFFLE CEILING

Ultrasil make U Shape Baffle Ceiling is a kind of visible type ceiling, able to adjust the visual height of a house, and can hide all the pipelines and other facilities in the bottom of the building, and can also lead sunlight or lamplight. It enables an open field of vision, good ventilation and air flow, the connection lines are bright and neat, with clear levels, reflecting the concise modern style, simple and convenient in installation assembly and disassembly, has become the main popular product on decoration market.

Passages, Balconies, Lift Lobbies, Exhibition Hall, Reception Areas.

  • Panels : 25mm / 50mm / 75mm wide, 25mm / 50mm / 75mm / 100mm / 150mm deep, length up to 4 mtr.
  • Material : Panel make 0.45 / 0.50mm Galvanized Steel & 0.50 / 0.65mm Aluminium -TCT.
  • Carrier : Various Gap 25mm wide, 100mm made of 0.50mm / 0.60mm thick black Coil Coated Galvanized Steel/Powder coated. 20mm wide, 40mm deep.
  • Perforation :
  • Paint Finish : 55 microns thick powder coating on exposed surface or 25 microns polyester coil coated over primer on visible surface with primer coat on rear side.
  • Suspension : 4mm dia galvanized rod, height adjustment Spring Steel big clip, panel coupler, GS wall angle.

Click on image to view larger:
